Stage 30

Summary

    1. White light curve fit:

  • Open your pcf file (the one in the work directory!).

  • Check that s30_fit_white and s30_most_recent_s20 are both True.

  • Check that s30_fit_spec and s30_most_recent_s21 are both False.

  • Navigate to the run directory and execute the pacman_script.py file using the –s30 flag

  • This should take approximately a minute using the default settings.

  • The results are then saved in /rundir/fit_white

    1. Spectroscopic light curves fit:

  • Open your pcf file (the one in the work directory!).

  • Check that s30_fit_white and s30_most_recent_s20 are both False.

  • Check that s30_fit_spec and s30_most_recent_s21 are both True.

  • Navigate to the run directory and execute the pacman_script.py file using the –s30 flag

  • This should take approximately a few minutes using the default settings.

  • The results are then saved in /rundir/fit_spec

Here we can fit the broadband (“white”) light curve (which was created in S20) or spectroscopic light curves (which were created in S21).

Let’s remove the first orbit from every visit and the first exposure from every orbit as they are typically strongly affected by instrument systematics:

remove_first_exp True
remove_first_orb True
remove_which_orb [0]

We can choose if we also want to run an MCMC using the emcee package after running the least squares routine:

run_lsq True
run_mcmc True

For the MCMC, let’s do a quick, small number of samples with an number of walkers at least greater than twice the numbers of free parameters.

#emcee
run_nsteps 4000
run_nwalkers 30
run_nburn 2000

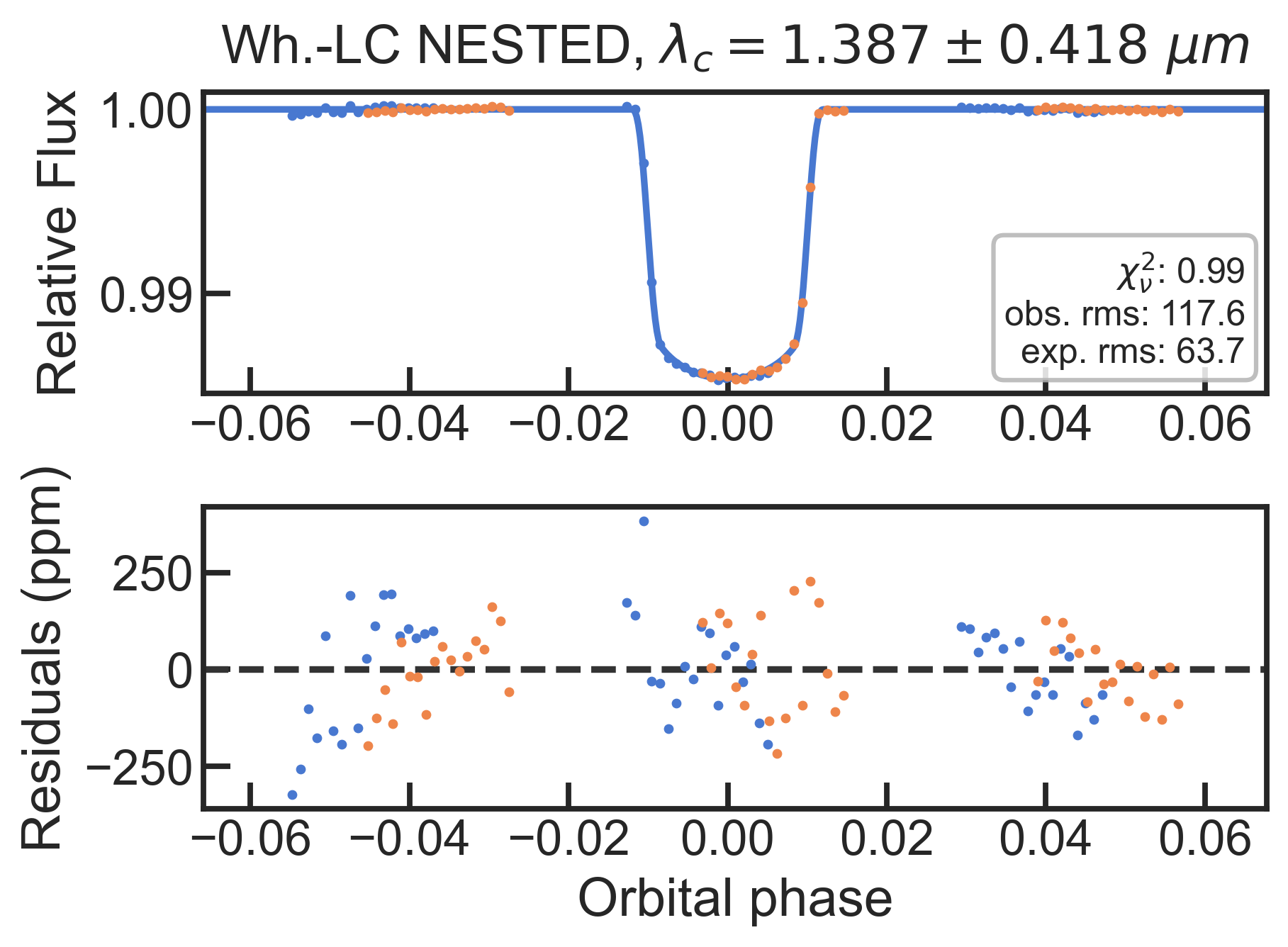

Note: The user can also use dynesty, a nested sampler, instead of emcee.

Let’s use the following model:

s30_myfuncs [‘constant’,’upstream_downstream’,’model_ramp’,’polynomial1’,’transit’]
  • ‘constant’: a normalization constant

  • ‘upstream_downstream’: accounts for the forward and reverse scanning effect which creates an offset in the measured flux

  • ‘model_ramp’: a ramp for every orbit

  • ‘polynomial1’: a slope over the visit

  • ‘transit’: a BATMAN transit model

Additional functions are listed on the models page.

Let’s have the following free parameters:

t0_0, rp_0, u1_0, c_0, c_1, v_0, v_1, r1_0, r1_1, r2_0, r2_1, scale_0, scale_1

Other important parameters (per, ars, inc) are fixed to the literature values.

The user can set in the pcf whether the uncertainties should be rescaled to achieve a reduced chi2 of unity. An alternative method is using an additional free parameter which rescales the uncertainties at every step of the sampler. This model is called uncmulti.

White light curve fit

Here’s the fit_par.txt file which was used in this example to fit the white light curve:

#parameter     fixed   tied   value       lo_lim   lo_val    hi_lim   hi_val   prior   p1        p2       step_size
per            True    -1     1.5804046   True     1.55      True     1.6      X       2.25314   2e-05    1e-07
t0             False   -1     0.18        True     0.16      True     0.2      U       0.0       0.3      0.001
t_secondary    True    -1     0.0         False    0.0       False    0.0      X       0.0       0.0      0.0
w              True    -1     90.0        False    0.0       False    0.0      X       0.0       0.0      0.0
a              True    -1     15.23       True     14.0      True     16.0     X       4.98      0.05     0.02
inc            True    -1     89.1        True     88.0      True     89.9     X       85.3      0.2      0.02
rp             False   -1     0.116       True     0.05      True     0.2      U       0.01      0.3      0.001
fp             True    -1     0.0         False    0.0       False    0.002    X       0.0       1.0      0.0
u1             False   -1     0.29        True     0.0       True     0.6      U       0.0       1.0      0.01
u2             True    -1     0.0         False    0.0       False    0.0      X       0.0       0.0      0.0
ecc            True    -1     0.0         False    0.0       False    0.0      X       0.0       0.0      0.0
c              False   0      8.37        True     6.0       True     8.9      X       6.7       7.0      0.001
c              False   1      8.37        True     6.0       True     8.9      X       6.7       7.0      0.001
v              False   0      -1e-06      False    -0.0001   False    -1e-08   X       -7e-06    -1e-06   1e-05
v              False   1      -1e-06      False    -0.0001   False    -1e-08   X       -7e-06    -1e-06   1e-05
v2             True    -1     0.0         True     0.0       True     1.0      X       0.0       0.0      1e-11
r1             False   0      0.1         False    0.0       False    1.0      U       -10.0     10.0     0.01
r1             False   1      0.1         False    0.0       False    1.0      U       -10.0     10.0     0.01
r2             False   0      0.0         False    5.5       False    7.5      U       -100.0    100.0    0.1
r2             False   1      0.0         False    5.5       False    7.5      U       -100.0    100.0    0.1
r3             True    0      0.0         False    -1.0      False    1.0      U       -10.0     10.0     0.001
r3             True    1      0.0         False    -1.0      False    1.0      U       -10.0     10.0     0.001
scale          False   0      0.0         False    -0.01     False    0.01     U       -0.1      0.1      0.002
scale          False   1      0.0         False    -0.01     False    0.01     U       -0.1      0.1      0.002
uncmulti_val   True    -1     1.0         False    1.0       False    7.0      U       0.1       10.0     0.01

If a parameter is free and not jointly shared across visits, the user has to repeat the parameter in the fit_par.txt file as shown above. Furthermore, the visit number must be added in the “tied” column. tied = -1 means that the parameters is shared across all visits, which makes sense for orbital parameters but less for systematics like the normalization constant.

Let’s run the white light curve fit now:

Successfully reloaded meta file
Starting s30
White light curve fit will be performed
using most recent s20 run: 2022-10-20_13-36-21
Identified file(s) for fitting: ['./run_2022-10-20_13-09-52_GJ1214_Hubble13021//extracted_lc/2022-10-20_13-36-21/lc_white.txt']

****** File: 1/1


Removed 8 exposures because they were the first exposures in the orbit.
Removed 34 exposures because they were the first orbit in the visit.
median log10 raw flux: 8.429980180844982
The highest amount of exposures in an orbit is 18
Number of free parameters:  13
Names of free parameters:  ['t0', 'rp', 'u1', 'c', 'c', 'v', 'v', 'r1', 'r1', 'r2', 'r2', 'scale', 'scale']
The predicted rms is 63.68

*STARTS LEAST SQUARED*
Runs MPFIT...
/home/zieba/Desktop/Projects/Open_source/PACMAN/src/pacman/lib/model.py:82: RuntimeWarning: divide by zero encountered in true_divide
  self.data_nosys = data.flux/self.model_sys
/home/zieba/Desktop/Projects/Open_source/PACMAN/src/pacman/lib/model.py:83: RuntimeWarning: divide by zero encountered in true_divide
  self.norm_flux = data.flux/self.model
t0_0         1.8276e-01      1.0250e-05
rp_0         1.1615e-01      8.2543e-05
u1_0         2.6010e-01      5.0892e-03
c_0          8.4302e+00      1.6253e-05
c_1          8.4300e+00      1.6509e-05
v_0          -1.2284e-06     1.1059e-07
v_1          -2.5289e-07     1.1064e-07
r1_0         6.7861e-02      6.1244e-03
r1_1         6.5916e-02      5.4471e-03
r2_0         6.7533e+00      3.2065e-02
r2_1         6.6605e+00      2.9597e-02
scale_0      4.1908e-03      1.7515e-05
scale_1      4.1977e-03      1.7513e-05
rms, chi2red =  122.480430626872 4.206812618533217
Saved white_systematics.txt file
['t0', 'rp', 'u1', 'c0', 'c1', 'v0', 'v1', 'r10', 'r11', 'r20', 'r21', 'scale0', 'scale1']

*STARTS MCMC*
Runs MPFIT...
/home/zieba/Desktop/Projects/Open_source/PACMAN/src/pacman/lib/model.py:82: RuntimeWarning: divide by zero encountered in true_divide
  self.data_nosys = data.flux/self.model_sys
/home/zieba/Desktop/Projects/Open_source/PACMAN/src/pacman/lib/model.py:83: RuntimeWarning: divide by zero encountered in true_divide
  self.norm_flux = data.flux/self.model
t0_0         1.8276e-01      2.1023e-05
rp_0         1.1615e-01      1.6930e-04
u1_0         2.6010e-01      1.0438e-02
c_0          8.4302e+00      3.3335e-05
c_1          8.4300e+00      3.3861e-05
v_0          -1.2284e-06     2.2682e-07
v_1          -2.5289e-07     2.2692e-07
r1_0         6.7861e-02      1.2561e-02
r1_1         6.5916e-02      1.1172e-02
r2_0         6.7533e+00      6.5767e-02
r2_1         6.6605e+00      6.0704e-02
scale_0      4.1908e-03      3.5925e-05
scale_1      4.1977e-03      3.5919e-05
rms, chi2red =  122.48043062689561 1.0000000000003877
Run emcee...
100%|#######################| 4000/4000 [00:44<00:00, 90.09it/s]
Saved white_systematics.txt file for mcmc run
Saved fit_results.txt file
Finished s30

There are several plots created then:

The raw light curve:

_images/raw_lc_bin0_wvl1.400.png

** From the least squares routine **

The fitted light curve without the systematics:

_images/lsq_lc_bin0_wvl1.400.png

The Allan deviation plot:

_images/corr_plot_bin0_wvl1.400.png

** Using emcee **

The fitted light curve without the systematics:

_images/mcmc_lc_bin0_wvl1.400.png

MCMC chains with burn-in:

_images/mcmc_chains_bin0_wvl1.400.png

MCMC chains without burn-in

_images/mcmc_chains_noburn_bin0_wvl1.400.png

Corner plot from the MCMC:

_images/mcmc_pairs_bin0_wvl1.400.png

Spectroscopic light curve fit

Here’s the fit_par.txt file which was used in this example to fit the spectroscopic light curves:

#parameter     fixed   tied   value       lo_lim   lo_val    hi_lim   hi_val   prior   p1        p2       step_size
per            True    -1     1.5804046   True     1.55      True     1.6      X       2.25314   2e-05    1e-07
t0             False   -1     0.18        True     0.16      True     0.2      U       0.0       0.3      0.001
t_secondary    True    -1     0.0         False    0.0       False    0.0      X       0.0       0.0      0.0
w              True    -1     90.0        False    0.0       False    0.0      X       0.0       0.0      0.0
a              True    -1     15.23       True     14.0      True     16.0     X       4.98      0.05     0.02
inc            True    -1     89.1        True     88.0      True     89.9     X       85.3      0.2      0.02
rp             False   -1     0.116       True     0.05      True     0.2      U       0.01      0.3      0.001
fp             True    -1     0.0         False    0.0       False    0.002    X       0.0       1.0      0.0
u1             False   -1     0.29        True     0.0       True     0.6      U       0.0       1.0      0.01
u2             True    -1     0.0         False    0.0       False    0.0      X       0.0       0.0      0.0
ecc            True    -1     0.0         False    0.0       False    0.0      X       0.0       0.0      0.0
c              False   0      8.37        True     6.0       True     8.9      X       6.7       7.0      0.001
c              False   1      8.37        True     6.0       True     8.9      X       6.7       7.0      0.001
v              False   0      -1e-06      False    -0.0001   False    -1e-08   X       -7e-06    -1e-06   1e-05
v              False   1      -1e-06      False    -0.0001   False    -1e-08   X       -7e-06    -1e-06   1e-05
v2             True    -1     0.0         True     0.0       True     1.0      X       0.0       0.0      1e-11
r1             False   0      0.1         False    0.0       False    1.0      U       -10.0     10.0     0.01
r1             False   1      0.1         False    0.0       False    1.0      U       -10.0     10.0     0.01
r2             False   0      0.0         False    5.5       False    7.5      U       -100.0    100.0    0.1
r2             False   1      0.0         False    5.5       False    7.5      U       -100.0    100.0    0.1
r3             True    0      0.0         False    -1.0      False    1.0      U       -10.0     10.0     0.001
r3             True    1      0.0         False    -1.0      False    1.0      U       -10.0     10.0     0.001
scale          False   0      0.0         False    -0.01     False    0.01     U       -0.1      0.1      0.002
scale          False   1      0.0         False    -0.01     False    0.01     U       -0.1      0.1      0.002
uncmulti_val   True    -1     1.0         False    1.0       False    7.0      U       0.1       10.0     0.01
Successfully reloaded meta file
Starting s30
Spectroscopic light curve fit(s) will be performed
using most recent s21 run: ./run_2022-10-20_13-09-52_GJ1214_Hubble13021//extracted_sp/bins11_2022-10-20_13-39-31
Identified file(s) for fitting: ['./run_2022-10-20_13-09-52_GJ1214_Hubble13021//extracted_sp/bins11_2022-10-20_13-39-31/speclc1.158.txt', './run_2022-10-20_13-09-52_GJ1214_Hubble13021//extracted_sp/bins11_2022-10-20_13-39-31/speclc1.204.txt', './run_2022-10-20_13-09-52_GJ1214_Hubble13021//extracted_sp/bins11_2022-10-20_13-39-31/speclc1.250.txt', './run_2022-10-20_13-09-52_GJ1214_Hubble13021//extracted_sp/bins11_2022-10-20_13-39-31/speclc1.296.txt', './run_2022-10-20_13-09-52_GJ1214_Hubble13021//extracted_sp/bins11_2022-10-20_13-39-31/speclc1.342.txt', './run_2022-10-20_13-09-52_GJ1214_Hubble13021//extracted_sp/bins11_2022-10-20_13-39-31/speclc1.389.txt', './run_2022-10-20_13-09-52_GJ1214_Hubble13021//extracted_sp/bins11_2022-10-20_13-39-31/speclc1.435.txt', './run_2022-10-20_13-09-52_GJ1214_Hubble13021//extracted_sp/bins11_2022-10-20_13-39-31/speclc1.481.txt', './run_2022-10-20_13-09-52_GJ1214_Hubble13021//extracted_sp/bins11_2022-10-20_13-39-31/speclc1.527.txt', './run_2022-10-20_13-09-52_GJ1214_Hubble13021//extracted_sp/bins11_2022-10-20_13-39-31/speclc1.573.txt', './run_2022-10-20_13-09-52_GJ1214_Hubble13021//extracted_sp/bins11_2022-10-20_13-39-31/speclc1.619.txt']

****** File: 1/11


Removed 8 exposures because they were the first exposures in the orbit.
Removed 34 exposures because they were the first orbit in the visit.
median log10 raw flux: 6.246127147951612
The highest amount of exposures in an orbit is 18
Number of free parameters:  13
Names of free parameters:  ['t0', 'rp', 'u1', 'c', 'c', 'v', 'v', 'r1', 'r1', 'r2', 'r2', 'scale', 'scale']
The predicted rms is 247.28

*STARTS LEAST SQUARED*
Runs MPFIT...
/home/zieba/Desktop/Projects/Open_source/PACMAN/src/pacman/lib/model.py:82: RuntimeWarning: divide by zero encountered in true_divide
  self.data_nosys = data.flux/self.model_sys
/home/zieba/Desktop/Projects/Open_source/PACMAN/src/pacman/lib/model.py:83: RuntimeWarning: divide by zero encountered in true_divide
  self.norm_flux = data.flux/self.model
t0_0         1.8281e-01      3.9907e-05
rp_0         1.1644e-01      3.2115e-04
u1_0         2.6678e-01      1.9851e-02
c_0          6.2463e+00      4.7835e-05
c_1          6.2461e+00      4.8850e-05
v_0          -8.9100e-07     4.2938e-07
v_1          -4.6203e-07     4.2955e-07
r1_0         9.3385e-02      3.1389e-02
r1_1         8.8542e-02      3.2951e-02
r2_0         6.8805e+00      1.2962e-01
r2_1         6.9881e+00      1.4549e-01
scale_0      4.1980e-03      6.8081e-05
scale_1      4.0987e-03      6.8061e-05
rms, chi2red =  287.29232332160944 1.5360471033190013
['t0', 'rp', 'u1', 'c0', 'c1', 'v0', 'v1', 'r10', 'r11', 'r20', 'r21', 'scale0', 'scale1']

*STARTS MCMC*
Runs MPFIT...
/home/zieba/Desktop/Projects/Open_source/PACMAN/src/pacman/lib/model.py:82: RuntimeWarning: divide by zero encountered in true_divide
  self.data_nosys = data.flux/self.model_sys
/home/zieba/Desktop/Projects/Open_source/PACMAN/src/pacman/lib/model.py:83: RuntimeWarning: divide by zero encountered in true_divide
  self.norm_flux = data.flux/self.model
t0_0         1.8281e-01      4.9460e-05
rp_0         1.1644e-01      3.9802e-04
u1_0         2.6678e-01      2.4603e-02
c_0          6.2463e+00      5.9285e-05
c_1          6.2461e+00      6.0543e-05
v_0          -8.9100e-07     5.3217e-07
v_1          -4.6203e-07     5.3237e-07
r1_0         9.3385e-02      3.8903e-02
r1_1         8.8542e-02      4.0838e-02
r2_0         6.8805e+00      1.6065e-01
r2_1         6.9881e+00      1.8032e-01
scale_0      4.1980e-03      8.4377e-05
scale_1      4.0987e-03      8.4353e-05
rms, chi2red =  287.29232332158693 0.9999999999998428
Run emcee...
100%|███████████████████████████████████████████████████████████████████████████████████████████████████| 4000/4000 [00:43<00:00, 92.36it/s]

****** File: 2/11




Finished s30

Most plots which are created during the white light curve fit will be also created after running the spectroscopic fits. Let’s look at some examples:

The first raw spectroscopic light curve:

_images/raw_lc_bin0_wvl1.158.png

** Using least squared **

The fitted spectroscopic light curve without the systematics:

_images/lsq_lc_bin0_wvl1.158.png

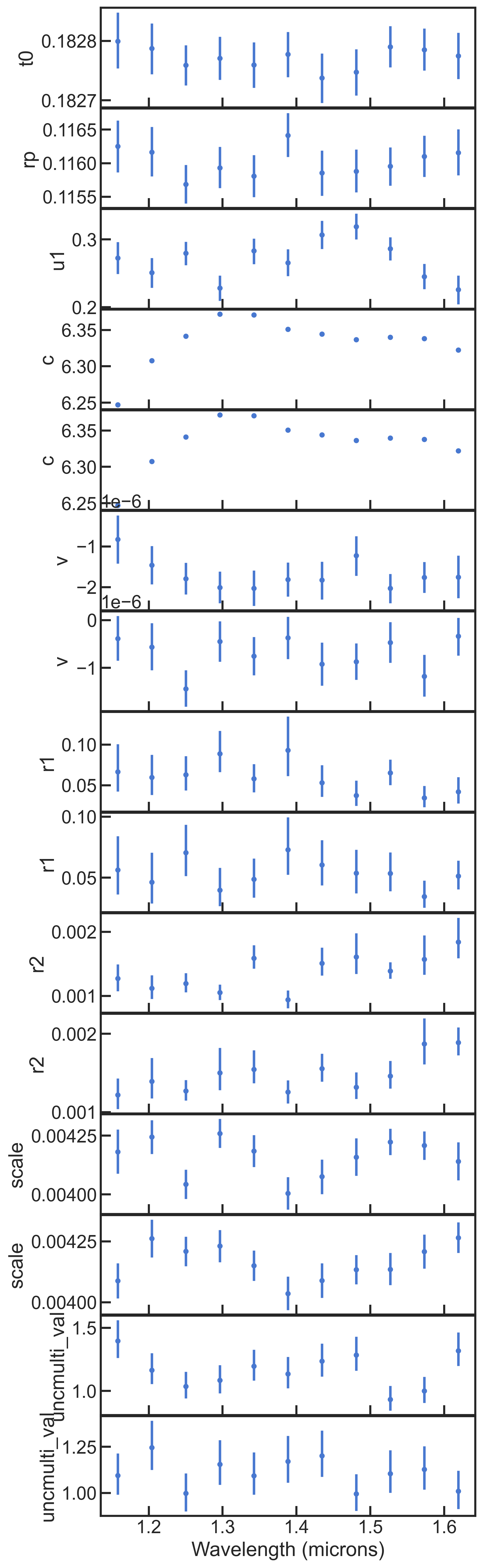

All fitted parameters as a function of wavelength:

** Using emcee **

_images/mcmc_params_vs_wvl.png

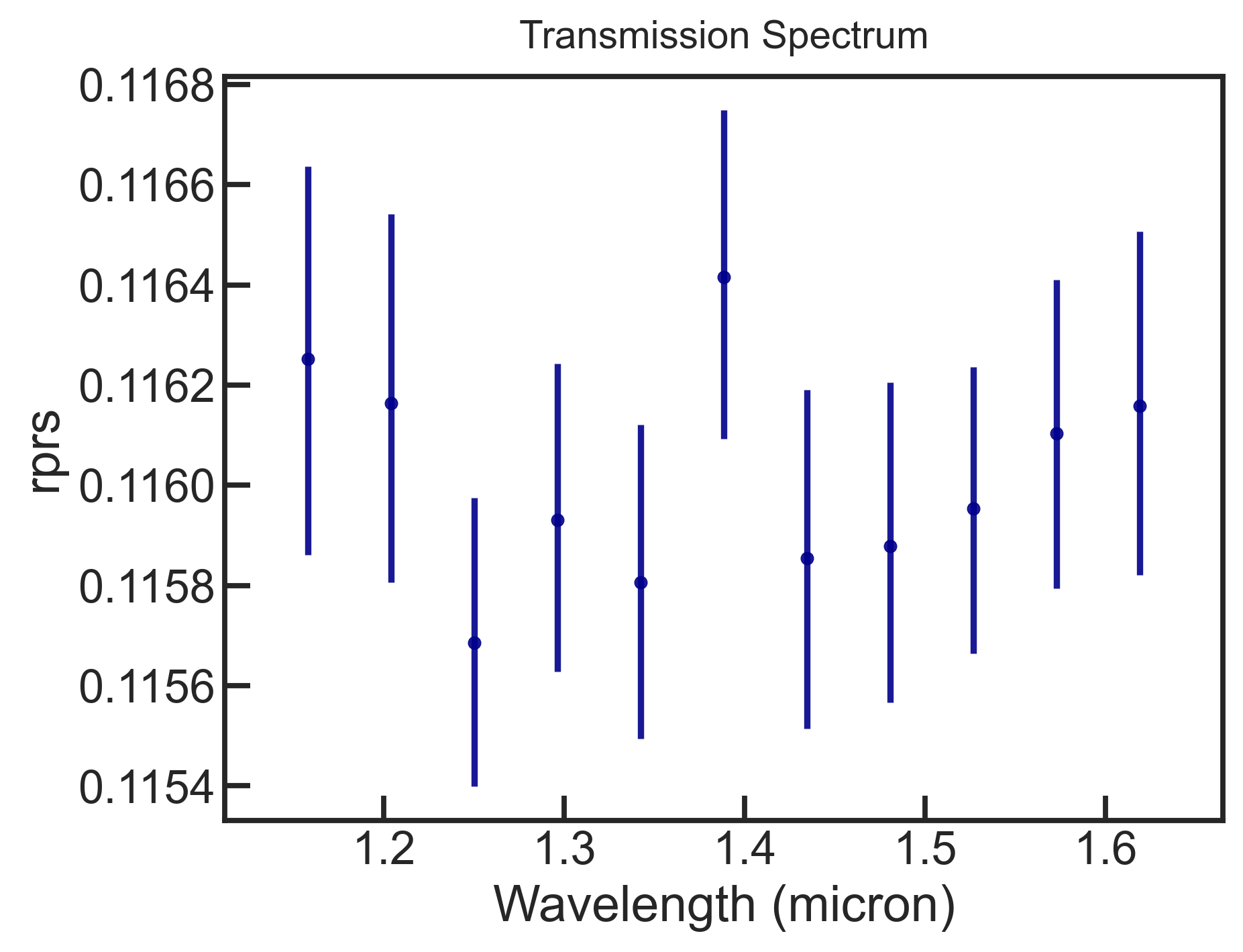

The spectrum (rprs vs wavelength):

_images/mcmc_rprs.png
